工艺：鱼鳞纹的实现

鱼鳞纹的实现有两种

一.通过系统的自带的点焊功能

二.送丝机脉冲送丝（超强伟业带脉冲功能的送丝机）

There are two ways to achieve fish scale pattern

1. Through the system's built-in spot welding function

II. Pulse wire feeder (wire feeder with pulse function from Chaojiang Weiye)

一.使用点焊功能实现

1.1 首页启用点焊模

1. Implement using spot welding function

1.1 Enable spot welding mode on the homepage

式

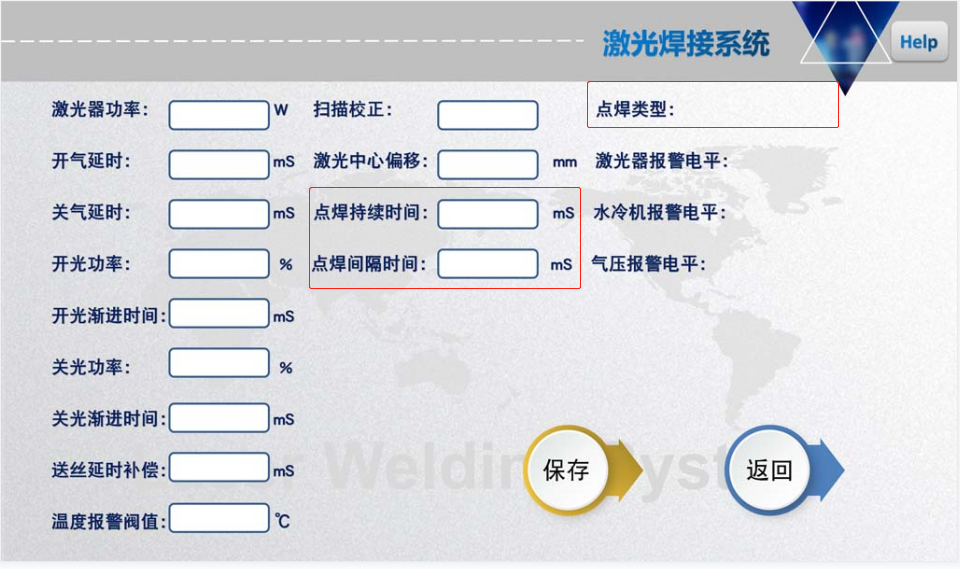

1.2 设置里面选择点焊的类型（鱼鳞纹）

1.3 设置里面设置合理的点焊持续时间和点焊间隔时间

1.2 Select the type of spot welding (fish scale pattern) in the settings

1.3 Set reasonable spot welding duration and spot welding interval in the settings

（在此模式下，间断时只关激光，其他设置的参数如开关/关光时间不影响也不生效，所以保护镜损坏量会上升）

只需设置点焊持续时间和间隔时间即可产生鱼鳞纹焊接效果，最低可设置1ms）

例

点焊持续时间：150ms（此参数影响焊接的纹状大小）

点焊间隔时间：50ms（此参数影响两个纹状之间的间隔）

(In this mode, only the laser is turned off during intermittent periods, and other set parameters such as on/off time do not affect or take effect, so the amount of damage to protective glasses will increase)

Simply set the spot welding duration and interval time to achieve a fish scale welding effect, with a minimum setting of 1ms

example

Spot welding duration: 150ms (this parameter affects the size of the weld pattern)

Spot welding interval: 50ms (This parameter affects the interval between two stripes)

间断模式焊接

（在此模式下，间断时关激光、关保护气体、停止送丝。其他设置的参数如开关/关光时间影响也生效，。主要用于定长焊接）

通过设置点焊持续时间来改变焊接长度，点焊间隔时间可设高一些

例

点焊持续时间：1000ms（此参数影响焊接长度，也就是出光的时间）

点焊间隔时间：5000ms（此参数可固定数值，默认为5000）

请注意，在此模式下，断丝的时候需要人为的判定，及时上抬断丝

Intermittent mode welding

(In this mode, the laser is turned off, the shielding gas is turned off, and the wire feeding is stopped during intermittent periods. Other set parameters such as the on/off time also take effect. It is mainly used for fixed-length welding)

By adjusting the duration of spot welding, the welding length can be altered, and the interval between spot welds can be set longer

example

Spot welding duration: 1000ms (This parameter affects the welding length, which is the time for light emission)

Spot welding interval: 5000ms (this parameter can be fixed, with a default value of 5000)

Please note that in this mode, manual judgment is required when the wire breaks, and the broken wire needs to be lifted up in a timely manner

二.送丝机脉冲送丝（超强伟业带脉冲功能的送丝机）

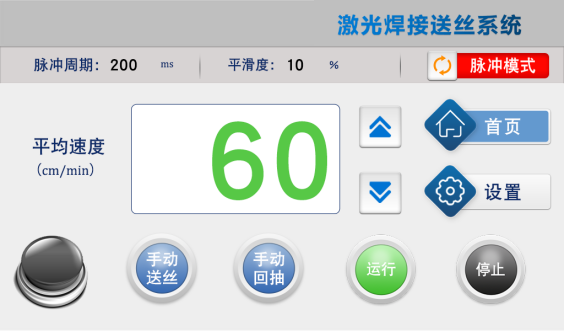

系统不做变更，正常的焊接模式下，通过送丝机切换到脉冲模式，设置脉冲周期和平滑度

II. Pulse wire feeder (wire feeder with pulse function from Chaogang Weiye)、

Without making any changes to the system, under normal welding mode, switch to pulse mode through the wire feeder, and set the pulse period and smoothness
